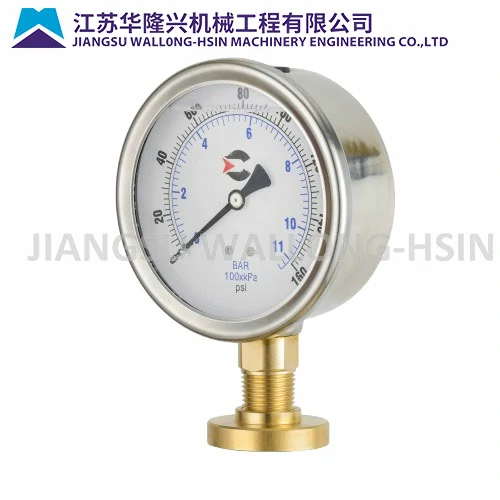

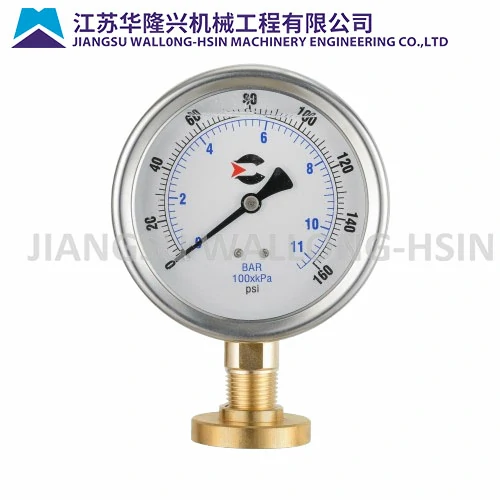

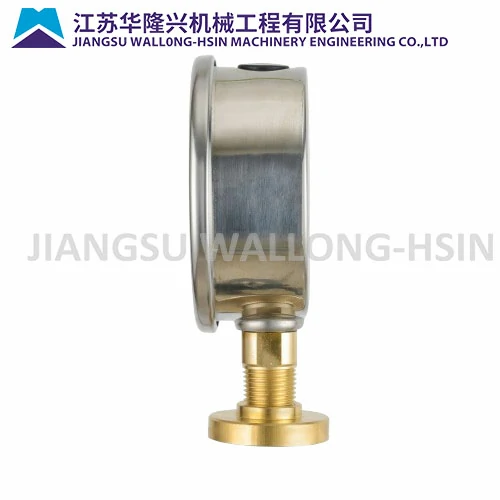

Connection types:

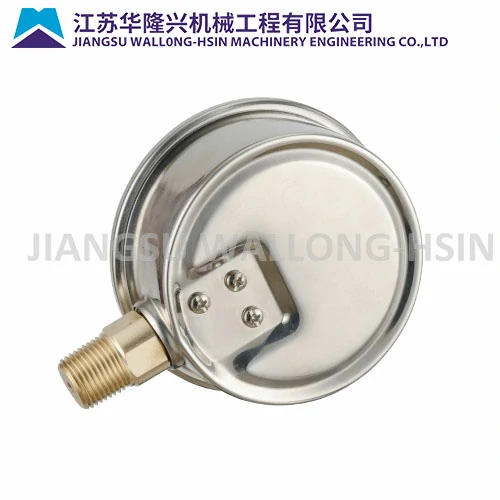

L-A type (bottom mount)

L-B type (bottom mount with back flange)

L-AD type (center back mount)

L-BD type (center back mount with front flange)

L-UD type (center back mount with u-clamp)

L-DU type (lower back mount with or without front flange)

Application:

water, air, gas, oil and working fluid not corrosive to wetted parts

Specification

Size:  1.2″ (30mm), 1.5” (40mm), 2”(50mm), 2.5”(63mm) , 3”(75mm),4”(100mm), 6”(150mm)

Measuring Range: compound, vacuum 76cmHg (30″Hg) up to 15,000 psi (1,000 bar)

Dial: white aluminum with markings and graduations

Window: polycarbonate, glass

Pointer: black finished aluminum

Ring: sus304 stainless steel

Case: sus304 stainless steel

Filling: dry and fillable (oil type available glycerin, silicone)

Movement: brass

Socket: brass or chromed plated brass

Bourdon Tube: 316L C-tube for vacuum to 800 psi, spiral tube wound for 1,000 psi to 15,000 psi

Connection: 1/8″, 1/4″, 3/8″, 1/2″ PT, NPT, BSP thread

Mounting: bottom, center back with surface, flush and u-clamp

Accuracy: 1.5″, 2″(+/-2.5% of full scale), 2.5″, 3″, 4″, 6″(+/-1.5% of full scale)

Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
