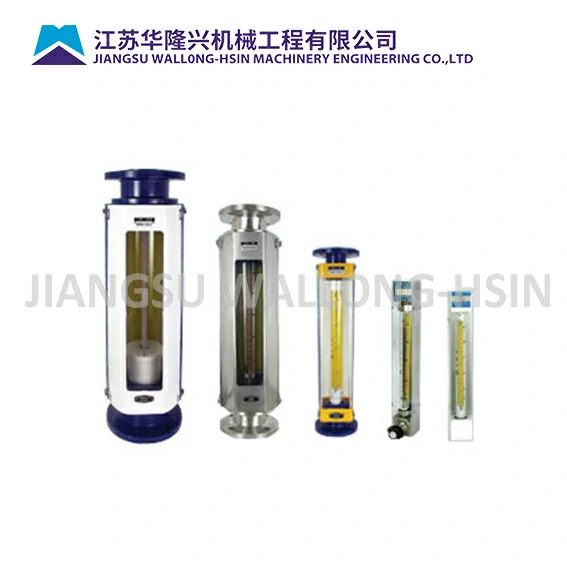

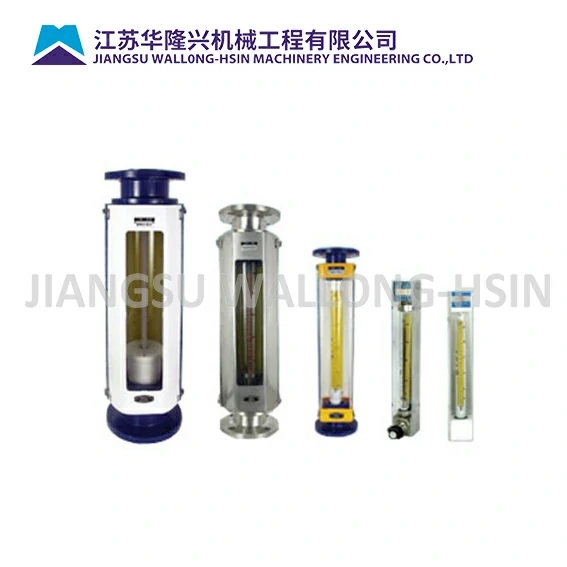

Glass Tube Rotameter
This rotameter has the features of high sensitivity, wide measuring range, low pressure loss, easy to operate and maintenance, etc. It is usually used to measure transparent liquid and gas with low pressure, high temperature, and without suspended particles. It has been widely used in petroleum, chemical, electronics, environmental protection, power supply, medicine and other industries.
Performance
- Medium temperature: stainless steel ≤120℃
- Accuracy: ±2.5%
- Sealing material: NBR/Silica gel
- Other parts material: stainless steel
- Flange standard: HG20592 – 2009 PN16
Technical Parameters
| Diameter (DN) | Measuring range | Working temperature (Mpa) | Operating temperature (℃) | |
| Water (20℃) | Air (101325pa) | |||
| 15 | 30 – 300L/H
60 – 600L/H 80 – 800L/H |
09 – 9m³/H
1.8 – 18m³/H 2.5 – 25m³/H |
≤0.8 | -20°C – +120°C |
| 20/25 | 100 – 1000L/H
200 – 2000L/H 300 – 3000L/H 400 – 4000L/H |
3 – 30m³/H
6 – 60m³/H 9 – 90m³/H 12 – 120m³/H |
||
| 32/40 | 0.4 – 4m³/H
0.6 – 6m³/H 1 – 10m³/H |
12 – 120m³/H
18 – 180m³/H 30 – 300m³/H |
≤0.6 | |
| 50 | 1 – 10m³/H
1.6 – 16m³/H 2.5 – 25 m³/H |
30 – 300m³/H
48 – 480m³/H 75 – 750m³/H |
||
| 65/80 | 2 – 20m³/H
3 – 30m³/H 4 – 40m³/H 5 – 50m³/H 6 – 60m³/H |
60 – 600m³/H
90 – 900m³/H 120 – 1200m³/H 150 – 1500m³/H 180 – 1800m³/H |
≤0.4 | |
| 100 | 6 – 60m³/H
8 – 80m³/H 10 – 100m³/H |
180 – 1800m³/H
240 – 2400m³/H 300 – 3000m³/H |
||
Dimension Diagrams
| Flange standard | Item Code | FA – 15 | FA – 20 | FA – 25 | FA – 32 | FA – 40 | FA – 50 | FA – 65 | FA – 80 | FA – 100 |
| L | 260 | 340 | 340 | 340 | 340 | 340 | 390 | 390 | 410 | |
| H(Glass tube length) | 150 | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | |
| HG20592 – 2009 (PN16) | D1 | Φ95 | Φ105 | Φ115 | Φ140 | Φ150 | Φ165 | Φ185 | Φ200 | Φ220 |
| D2 | Φ65 | Φ75 | Φ85 | Φ100 | Φ110 | Φ125 | Φ145 | Φ160 | Φ180 | |
| n – d | 4 – Φ14 | 4 – Φ14 | 4 – Φ14 | 4 – Φ18 | 4 – Φ18 | 4 – Φ18 | 4 – Φ18 | 8 – Φ18 | 8 – Φ18 | |
| ANSI B16.5 (150LB) | D1 | Φ89 | Φ99 | Φ108 | Φ117.5 | Φ127 | Φ152.5 | Φ178 | Φ190.5 | Φ228.5 |
| D2 | Φ60.5 | Φ70 | Φ79 | Φ89 | Φ98.5 | Φ120.7 | Φ140 | Φ152.5 | Φ190.5 | |
| n – d | 4 – Φ15.7 | 4 – Φ15.7 | 4 – Φ15.7 | 4 – Φ15.7 | 4 – Φ14.7 | 4 – Φ19.1 | 4 – Φ19.1 | 4 – Φ19.1 | 8 – Φ19.1 | |
| JIS B 2220:2004 (10K) | D1 | Φ95 | Φ100 | Φ125 | Φ135 | Φ140 | Φ155 | Φ175 | Φ185 | Φ210 |
| D2 | Φ70 | Φ75 | Φ90 | Φ100 | Φ105 | Φ120 | Φ140 | Φ150 | Φ175 | |
| n – d | 4 – Φ15 | 4 – Φ15 | 4 – Φ19 | 4 – Φ19 | 4 – Φ19 | 4 – Φ19 | 4 – Φ19 | 8 – Φ19 | 8 – Φ19 |
Notes: 1). This flowmeter series all adopt 304 stainless steel. 2). Conventional flanges are domestic standards, same as DIN standard, but Japanese standard or American tandard can also be customized.
