20221018103353Features

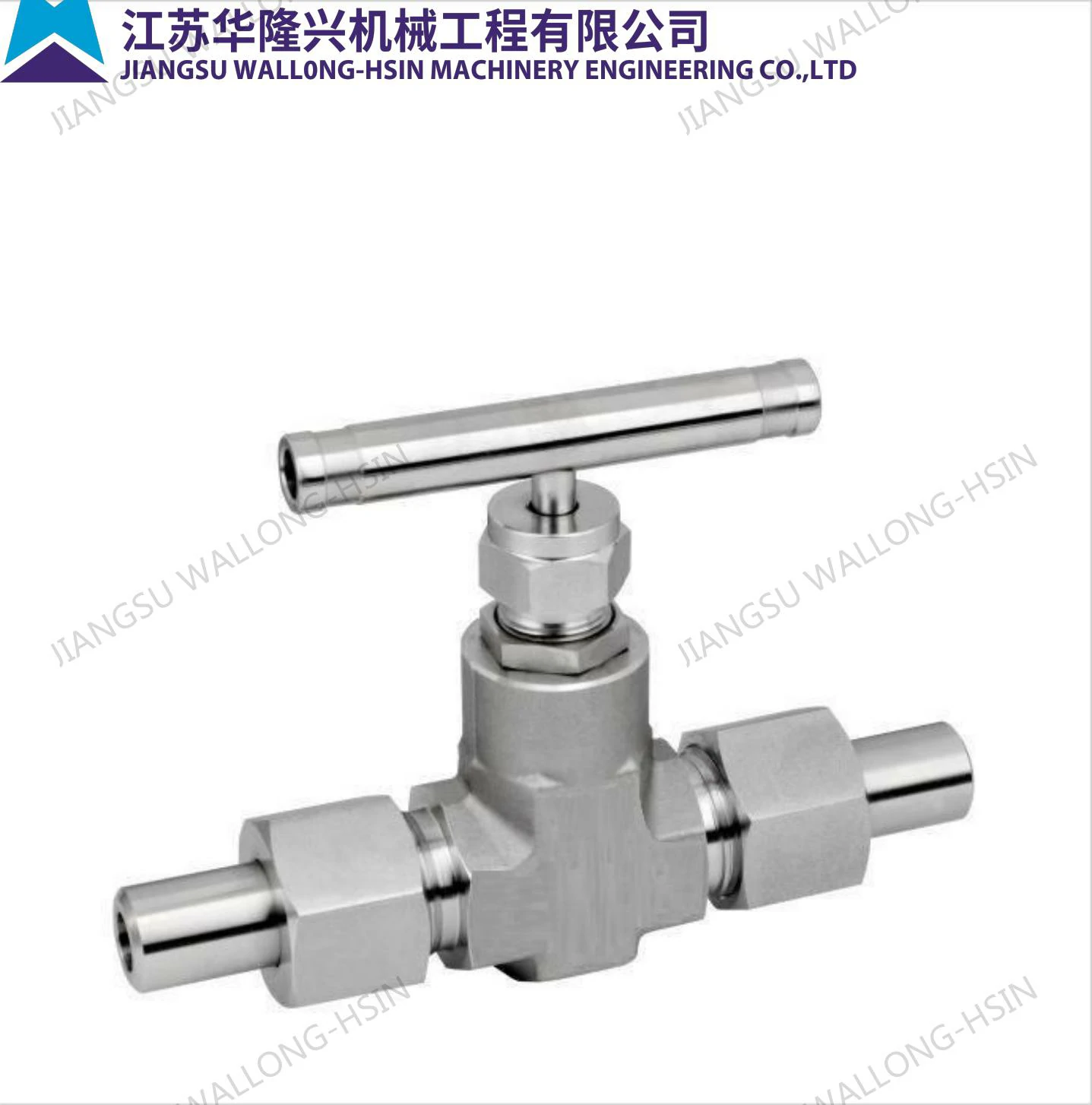

V6 Series

Maximum working pressures:

Stain less steel:6000 psig (414 bar)

Alloy C-276:6000 psig (414 bar)

Alloy400: 5000 psig (345bar)

Titanium:3500 psig (241bar)

Brass:3000 psig (207bar)

Working temperature:

PTFE: -65°F to 450°F（-54℃ to 232℃）

PEEK: -65°F to 500°F (-54℃ to 260℃)

Graphite:-65°F to 1200°F(-54℃ to 649℃)

TWO-stem design: thread hardened upper stem and smooth surface hardened lower stem

Upper stem thread lubricant isolated from system media

Linearly in stead of helical movement of the non-rotating lower stem, avoiding galling damage to the seat and tip, as well as reducing the total friction area between the packing and the lower stem

Safety back seating seal in fully open position

Panel mounting available as an option

Steady and durable fastening of the handle by double lock-pins

Handle of different colors available for option

Leak-tight performance testing for every valve with nitrogen at the maximum working pressure
