Connection types:

P-A type (bottom mount)

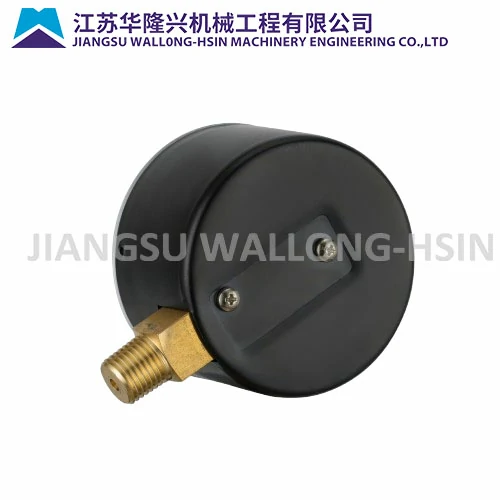

pressure gauge with u-clamp

Application:

water, air, gas, pump, compressor, regulator and working fluid not corrosive to wetted parts

Specification

Size:  2.5”(63mm)

Measuring Range: compound, vacuum 76cmHg (30″Hg) up to 15,000 psi (1,000 bar)

Dial: white aluminum with markings and graduations

Window: polycarbonate, glass, plastic

Pointer: black finished aluminum

Case: black painted steel, chrome plated steel, polished brass

Movement: brass

Socket: brass

Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi

Connection: 1/4″ PT, NPT, BSP thread

Mounting: bottom

Accuracy: 1.2″~2″(+/-2.5% of full scale), 2.5″up (+/-1.5% of full scale)

Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
