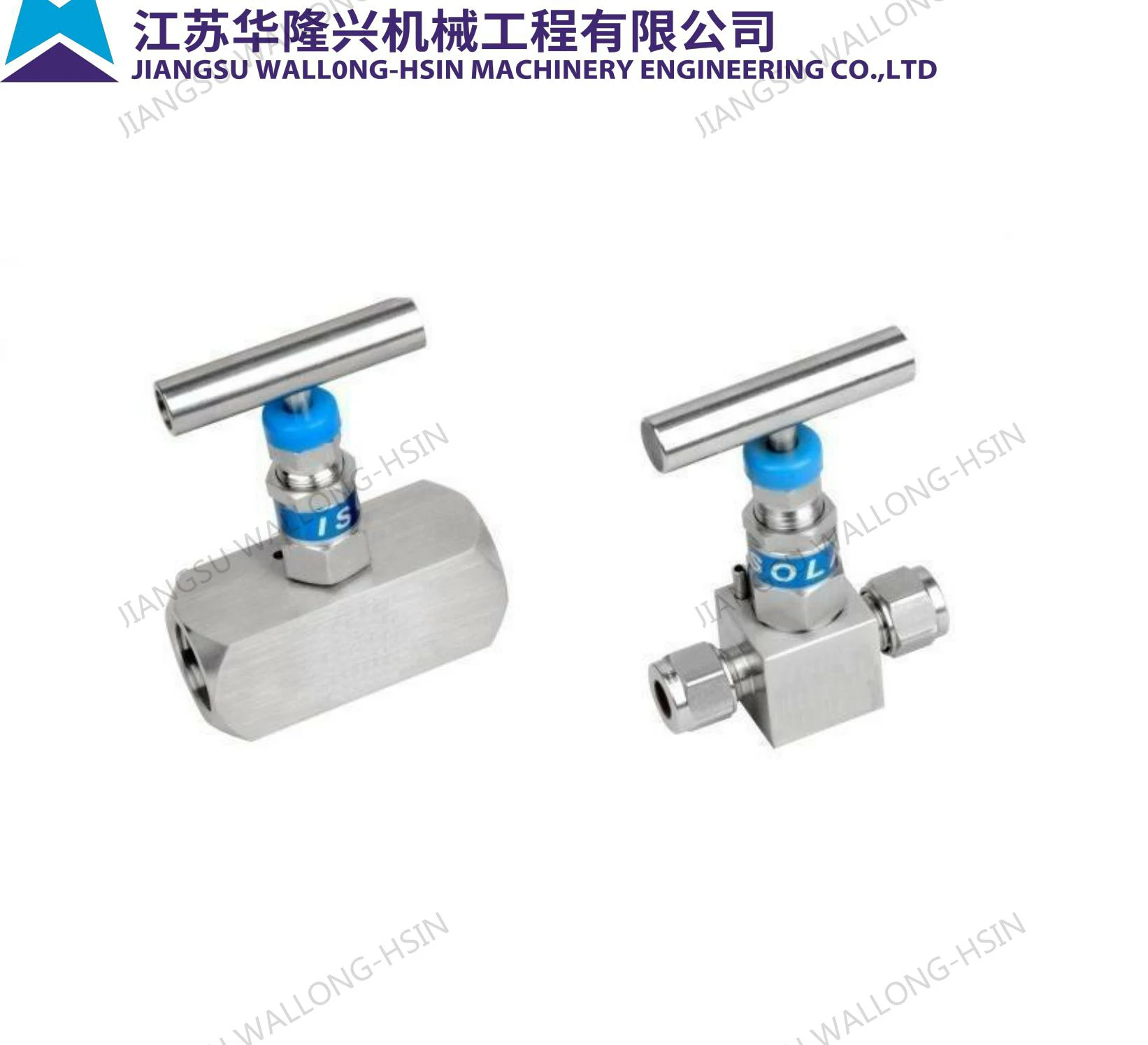

Features

Pressure up to 6000 psig (414 bar) for standard series

Pressure up to 10000 psig (689 bar)for high pressure series

Temperature from-65°F to 450°F (-54℃ to 232℃)

with PTFE packing

Temperature from-65°F to 1200°F (-54℃ to 649℃)

with Grafoil packing

Non-rotating stem tip

Packing below stem thread isolates the thread

lubricants from the media

Body to bonnet seal with metal to metal constant compressing,

isolates bonnet thread from the media

Back seating design protects the packing in fully open position

Panel mountable

100% factory tested
