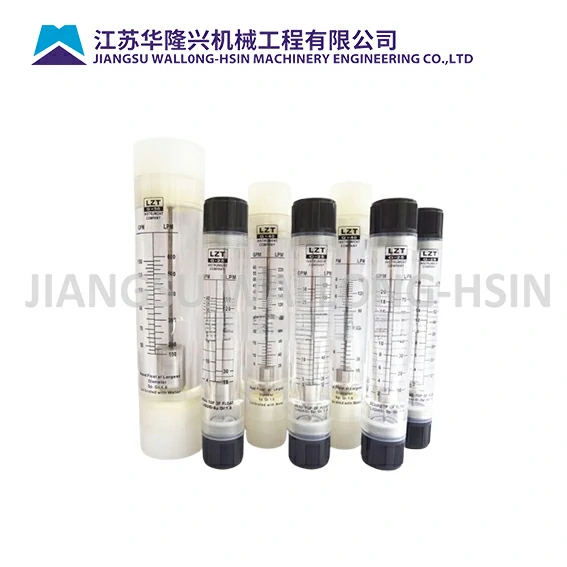

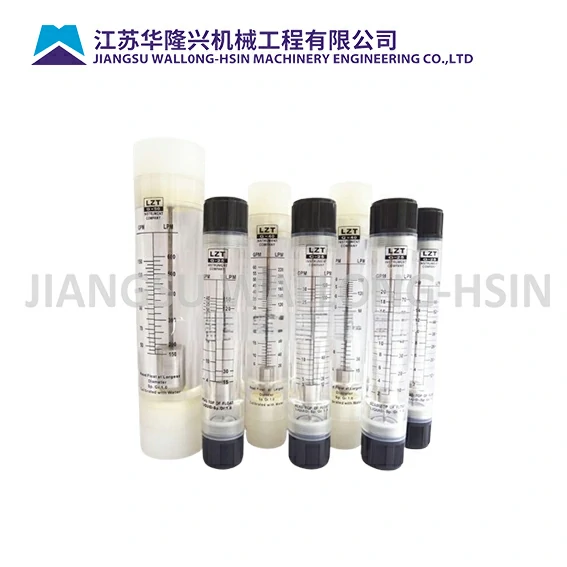

Acrylic Tube Rotameter
Acrylic Tube Rotameter (Panel Type & Piping Type ) is one of the variable – area flow meters. The measuring tube is made of high – quality and transparent lucite(acrylic). This rotameter is mainly applied to clean water treatment and environmental protection projects. It is also widely used in chemical industry, petroleum, light industry, medicine, fertilizer, food, papermaking, scientific research and other fields to measure the single – phase and non – pulsating flow of liquid and gas.
Acrylic Tube Rotameter (Panel Type & Piping Type ) has the features of high transparency, easy to read, not easy to break, light weight, long – life, easy installation and connection, etc.
Technical Parameters
| Normal flowrate range
(water) |
GPM | 0.1~1 | 0.2~2 | 1~5 | 1~10 | 2~16 | 2~20 | 4~40 | 6~60 | 10~100 | 50~150 |
| LPM | 0.5~4 | 1~7 | 2~18 | 5~35 | 4~60 | 10~70 | 15~150 | 25~250 | 50~350 | 190~550 | |
| Accuracy | ±4%FS ±6%FS | ||||||||||
| Repeatability | ±0.25%FS | ||||||||||
| Maximum pressure | 1MPa/150psig(Higher pressure resistance needs to be customized) | ||||||||||
| Maximum temperature | 80°C/176°F | ||||||||||
| Body material | PMMA(Acrylic) | ||||||||||
| Float material | 316(Stainless steel) Agate ball (micro flow) | ||||||||||
| Guide rod material | 316(Stainless steel) | ||||||||||
| Fastening screw material | H62(Copper) | ||||||||||
| Tube connection material | PVC,ABS (Nonpoisonous). (Can be made of stainless steel or copper chromium) | ||||||||||
| Upper and lower adapter bearing | F46 | ||||||||||
| O ring | Silicon rubber & Viton | ||||||||||
Notes: Panel (Piping) type rotameter can be customized with different medium, flow range, connection size and material. We can offer OEM and ODM services.
