Connection types:

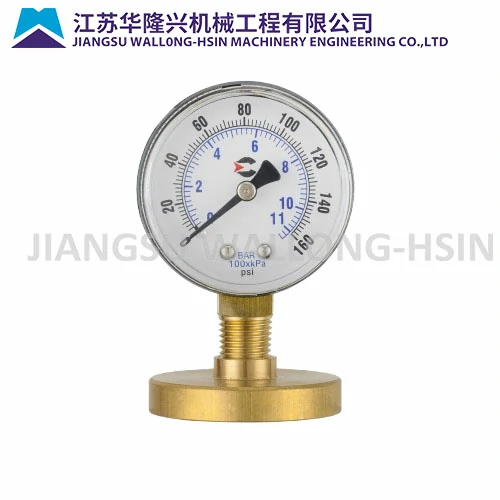

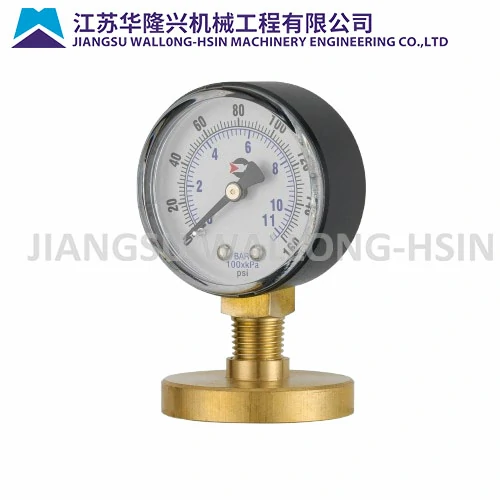

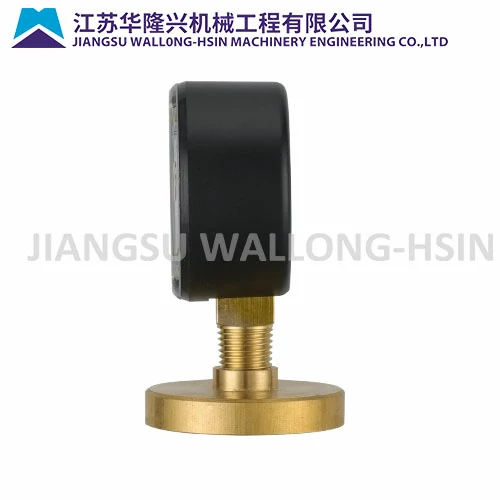

P-A type (bottom mount)

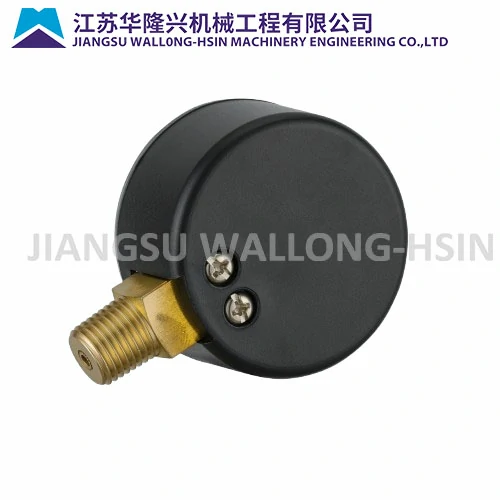

P-AD type (center back mount)

Optional with red pointer

Application:

water, air, gas, pump, compressor, regulator and other working fluid not in corrosion.

Specification

Size: 1.5”(40mm), 2”(50mm), 2.5”(63mm)

Measuring Range: compound, vacuum 76cmHg (30″Hg) up to 15,000 psi (1,000 bar)

Dial: white aluminum with markings and graduations

Window: snap-in plastic

Pointer: black finished aluminum

Case: black ABS

Movement: brass

Socket: brass

Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi

Connection: 1/8″, 1/4″, 3/8″, 1/2″ PT, NPT, BSP thread

Mounting: bottom, center back

Accuracy: 1″(+/-3% of full scale), 1.5″, 2″(+/-2.5% of full scale), 2.5″, 3″(+/-1.5% of full scale)

Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
